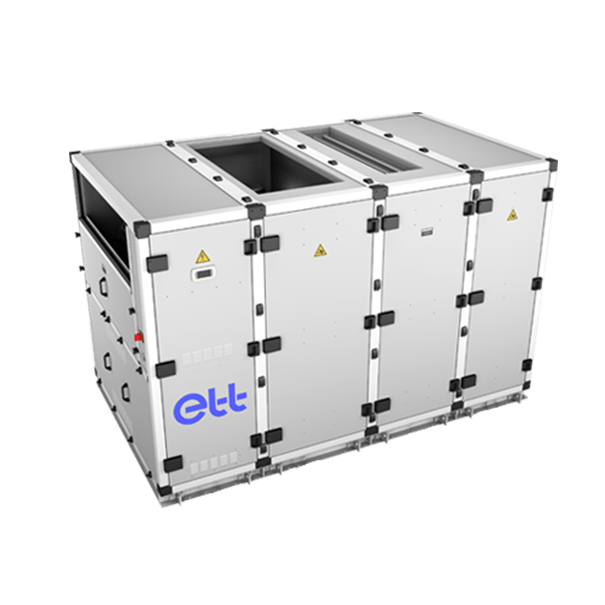

X-RCAM+

Air treatment Heat pump 100% fresh air operation

X-RCAM+ (Recovery Clean Air Management) is a double-flow heat pump with dual energy recovery from the exhaust air. It is designed to supply fresh hygienic air at a neutral temperature, as required by regulations for public buildings: hotels, collective housing, hospitals and nursing homes, as well as office buildings.

Regulation is based on the supply air temperature.

Performance (according to EN 14511 standard)

Flow range: 3 000 – 15 000 m3/h

Cooling capacity range: 10 – 47 kW

SEER range: up to 4,1

SCOP range: up to11,7

Description

Thanks to the various innovations and materials used, the X-RCAM+ combines performance, reliability, air quality and respect for the environment.

 Thanks to its full aluminium structure (frame & casing) that ensures an excellent corrosion protection, this air conditioning and heating system is covered by a 20-year guarantee against corrosion (frame and casing).

Thanks to its full aluminium structure (frame & casing), the X-RCAM+ unit is covered by a 20-year anti-corrosion warranty.

This rooftop comes with a 5-year basic warranty and all ETT services: Commissioning, Audits, Service contracts etc.

Products top benefits

  • R32 (Low GWP)
  • Compact and high-performance casing
  • High-efficiency plate heat exchanger
  • Access on one side

Product options

Frame– Casing

  • Machine for outdoor installation
  • Motorised external supply air damper (CH38 – 2006/42/EC Directive)
  • Frame METU
  • Multi-block
  • Class L1 T2 Tb2 casing to NF EN 1886 (TÜV Nord)

Acoustics

  • STOPFLAM foam sound insulation for the technical compartment
  • Acoustic insulation for fresh air cowl

Air handling

  • Pressure gauge per filtration cell
  • Filter Fouling Analogue Control (FFAC)
  • Actuating smoke detector with battery back-up
  • Opacimetric filters ISO ePM1 80% (F9) th. 48 mm on supply air
  • Replacement filters
  • SCP and RPC sensors
  • ISO ePM1 80% (F9) th. 292 mm > Replacement ISO ePM1 80% (F9) filtration th. 292 mm

Auxiliaries

  • two-stage electric heater
  • Auxiliary hot water coil with analogue frost protection thermostat
  • Modulating 3-way valve for hot water coil
  • Shut-off valve on the supply + TA regulating valve on the return for hot water coil
  • Indirect adiabatic module option

Electrical

  • Machine Global Energy Meter
  • IT regime compatibility Global Machine Energy Metering

Installation

  • 200 or 400 mm aluminium feet

Communication

  • ETT Control Box remote touch display
  • myETTvision remote communication platform
  • TWIN control
  • Software licence for BacNet IP protocol

Warranty

  • Warranty extension up to 5 years

Reinforced protection

  • Heresite protection on hot water coil
  • Thermodynamic coils with heresite coating
  • High-performance plug fan with H2+S protective coating
