ULTI+ R32 RE

Air treatment Heat pump 4-damper system

Compliant with the ErP 2021 directive, the ULTI+ R32 RE is a double flow heat pump designed specifically for the ventilation, heating and cooling of rooms with variable occupancy, such as auditoriums and multipurpose rooms. These double flow heat pumps include various pieces of equipment for optimised energy use.

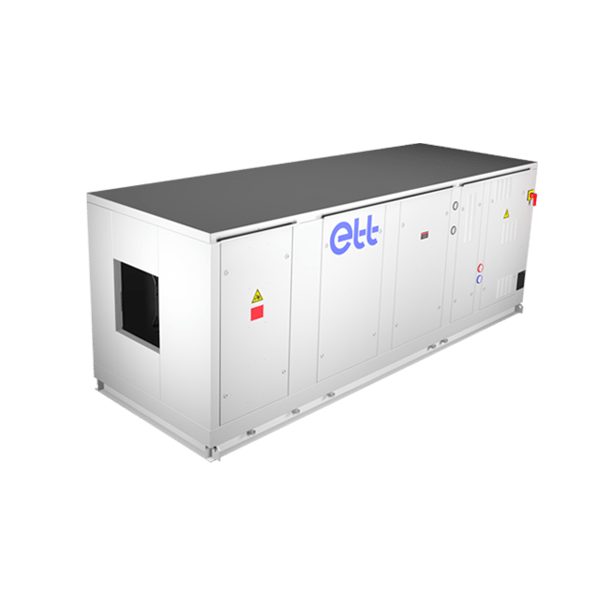

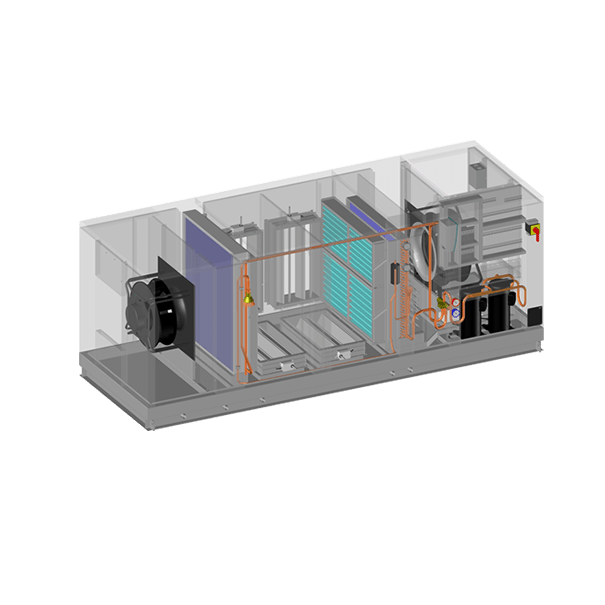

ULTI+ R32 RE is a rooftop with R32, a low GWP fluid

Description

The ULTI+ R32 RE double-flow heat pump using the low GWP R32 refrigerant is specifically designed for ventilation, heating and air conditioning of spaces with variable occupancy, such as, performance halls and community halls. This self-contained unit features specific components to maximise energy savings.

 Thanks to its full aluminium structure (frame & casing) that ensures an excellent corrosion protection, this air conditioning and heating system is covered by a 20-year guarantee against corrosion (frame and casing).

This single flow rooftop heat pump is delivered ready to operate. A separate technical compartment facilitates unit control and maintenance and allows measurement and adjustment during operation.

The ULTI+ R32 RE is designed to provide precise regulation, adapting the rotational speeds of the power stages, for optimum, continuous energy performance throughout its years of operation.

This rooftop comes with a 5-year basic warranty and all ETT services: Commissioning, Audits, Service contracts etc.

Products top benefits

  • Fluid R32 (Low GWP)
  • ERP 2021
  • 168 air handling configurations
  • Recovery of extracted air

Product options

Frame– Casing

  • Motorised external damper on supply air, except downwards (2006/42/EC Directive)

Acoustics

  • EC Low Noise supply and exhaust fans

Air handling

  • Operation with all recirculated air (excluding Public Buildings)
  • All fresh air operation
  • Actuating smoke detector with battery back-up
  • Epoxy coating for supply air and exhaust air fans
  • Analogue air flow controller (AFC) with supply and exhaust air fans flow rate auto-adjustment
  • Pressure gauge for supply air and exhaust air filters
  • ISO Coarse 65% (G4) refillable 98mm supply filters with analogue sensor
  • ISO ePM10 50% (M5) 98mm supply filters with analogue sensor
  • Double filters ISO Coarse 65% (G4) + ISO ePM1 50% (F7) or ISO ePM1 80% (F9) (48 + 48mm) at supply with analogue sensor
  • ISO ePM1 50% (F7) 98mm supply filters with analogue sensor
  • ISO ePM1 80% (F9) 98mm supply filters with analogue sensor
  • ISO Coarse 65% (G4) refillable 48mm supply filters with analogue sensor

Thermodynamics

  • Compressor MAP monitoring
  • Vinyl coating on thermodynamic coils
  • Diagnostic assistance for refrigerant leaks detection
  • HP and LP pressure gauges

Auxiliaries

  • Auxiliary hot water coil with analogue frost protection thermostat
  • Modulating 3-way valve for hot water coil
  • Shut-off valve on the supply + ‘TA’ regulating valve on the return for hot water coil
  • 2-stage sequential electric heaters + load shedding via dry contact
  • Preheating of fresh air by 3-stage electric auxiliary heaters

Electrics

  • Totalising electrical energy metering in compliance with RT 2012
  • Aluminium/copper terminal block (mandatory for aluminium supply cables)
  • 230V/16 A single-phase PC socket in the technical room (separate power supply to be provided by the installer)
  • IT earthing system compatibility
  • Cable cover for external power supply (to be fitted by the installer)

Installation

  • Adjustable connecting aluminium roof curb
  • Aluminum connection adapter curb
  • Adjustable ventilated aluminium curb
  • Ventilated adapting aluminium curb
  • 200, 400 or 600mm aluminium feet

Control

  • Year-round operation (compressor enabled for air conditioning with external temperature < +15°C)
  • Control function in Comfort mode (setpoint temperatures control by PID)
  • Free Cooling banning based on specific humidity comparison
  • Average room temperature (4 sensors)
  • Minimum fresh air slaving using turret contacts (3 maximum)

Communication

  • myETTvision
  • Remote touch screen ETT Control Box
  • CCAD remote display
  • Native RS485 Modbus
  • Modbus IP
  • BacNet IP

Warranty

  • Extended warranty from 6 to 7 years
