ULTI+ R32 OR

Air handling Heat pump Rooftop

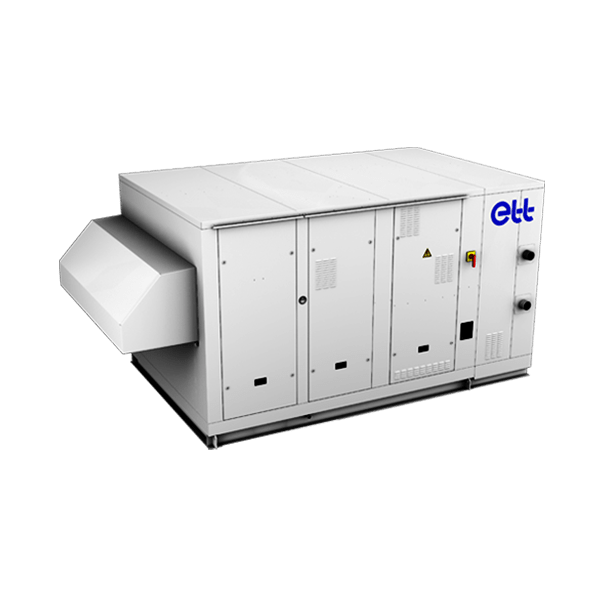

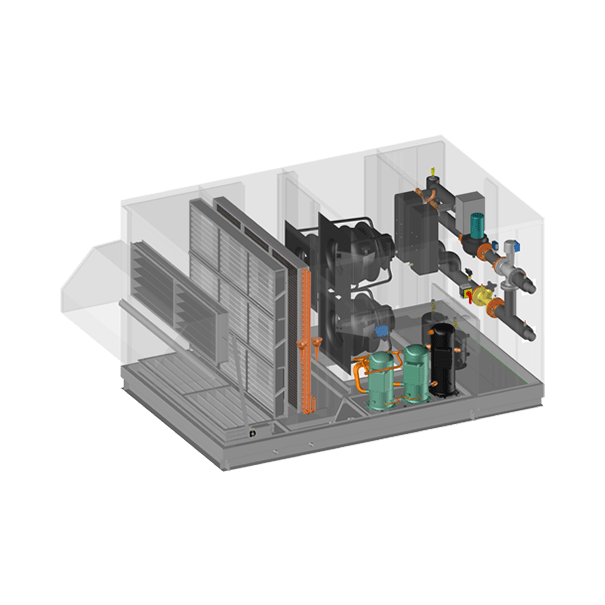

ULTI+ R32 OR is a single-flow, water-loop heat pump designed for ventilating, heating and air conditioning large spaces, including medium and large shopping centres and warehouses. This rooftop unit combines the latest technological developments to ensure optimised energy consumption.
Its performance and ease of installation make it a modular solution that adjusts its performance to its environment (renovation or new construction).

The ULTI+ R32 OR is a rooftop using R32, a low GWP refrigerant.

Performance (according to EN 14511 standard)

Flow range: 2,600 – 38,000 m3 /h

Cooling capacity range: 48 - 177Kw

Description

ULTIMA Green Line is ETT’s latest-generation modular rooftop range. It combines quality materials, performance, energy savings, acoustics, regulation and new-generation connected components to ensure that the units operate at optimum efficiency at all times.

An unrivalled product range (flow rates/power) that perfectly meets the weight and space constraints of existing units to be replaced.

The modular design allows for easy expansion of this range’s capacities. Users can choose to install the standard ULTI+ R32 heat pump, or add modules (condensing boiler(s), extract unit, extract unit with rotary energy recovery, dehumidifier, adiabatic module, OR [water-air] module) to this single-block unit in order to adjust the unit’s performance to the environment and the requirements of the application.

This rooftop comes with a 5-year basic warranty and all ETT services: Commissioning, Audits, Service contracts etc.

Products top benefits

  • Water-cooled rooftop
  • Water loop operation
  • Wide range of flow rates and power ratings available
  • Can be installed in a machine room

Product options

Frame - Casing

  • Double aluminium skin on inner compartment
  • Motorised external damper on supply air, except downwards (2006/42/EC Directive)

Acoustics

  • EC Low Noise supply fans
  • Compressors acoustic jackets

Air handling

  • Operation with all recirculated air (excluding Public Access Buildings)
  • All fresh air operation
  • Actuating smoke detector with battery back-up
  • Epoxy coating on supply air fans
  • Analogue air flow controller (AFC) with auto-adjustment of supply fans flow rate
  • Pressure gauge for supply air filters
  • ISO Coarse 65% (G4) refillable 98mm supply filters with analogue sensor
  • ISO ePM10 50% (M5) 98mm supply filters with analogue sensor
  • Double filters ISO Coarse 65% (G4) + ISO ePM1 50% (F7) or ISO ePM1 80% (F9) (48 + 48mm) at supply with analogue sensor
  • ISO ePM1 50% (F7) 98mm supply filters with analogue sensor
  • ISO ePM1 80% (F9) 98mm supply filters with analogue sensor
  • Pressure relief vent
  • Cowl for pressure relief gravity damper
  • Fresh air cowl extension

Thermodynamics

  • Air-conditioning operation only (non-reversible machine)
  • Compressor MAP monitoring
  • Vinyl protection for the fins of the refrigerant/air exchanger.

Auxiliaries

  • Recovery hot water coil with analogue frost protection thermostat (services on the side opposite the technical compartment)
  • Modulating 3-way valve for hot water recovery coil
  • Shut-off valve on the supply + ‘TA’ regulating valve on the return for hot water recovery coil
  • Preheating of fresh air by 3-stage electric auxiliary heaters

Electrics

  • Totalising electrical energy meter
  • Aluminium/copper terminal block (mandatory for aluminium supply cables)
  • 230V / 16 A single-phase PC socket in the technical compartment (separate power supply to be provided by the installer)
  • IT earthing system compatibility
  • Cable cover for external power supply (to be fitted by the installer)

Installation

  • Adjustable connecting aluminium roof curb
  • Aluminum connection adapter curb
  • Adjustable ventilated aluminium curb
  • Ventilated adapting aluminium curb
  • 200, 400 or 600mm aluminium feet

Control

  • Year-round operation (compressor enabled for air conditioning with external temperature < +15°C)
  • Control function in Comfort mode (setpoint temperatures control by PID)
  • Free Cooling banning based on specific humidity comparison
  • Flow Rate / Power Variation operation
  • HPE+ operation (High Energy Efficiency)
  • Average room temperature (4 sensors)
  • Minimum fresh air slaving using turret contacts (3 maximum)

Communication

  • myETTvision
  • Remote touch screen ETT Control Box
  • CCAD remote display
  • Native RS485 Modbus
  • Modbus IP
  • BacNet IP

Warranty

  • Extended warranty from 6 to 10 years
